Hardware Configuration and Installation





Unitech MSR200 Magnetic Stripe Reader





Low power CMOS design Keyboard emulation Bi-directional read capability

Conforms to ISO 7811, ANSI x4.16 & AAMVA (Driver Licenses) standards

Available with IBM PC XT/AT, PS/2 and RS232 interface Read dual or triple track cards

Compact and lightweight enclosure May be mounted on a keyboard or a flat surface

Provides feedback by LED and buzzer



Contact the TeleTracker Online Sales Department @ 877.277.6810 extension 1 for ordering information.





Installation

No hardware drivers required.



Configuration

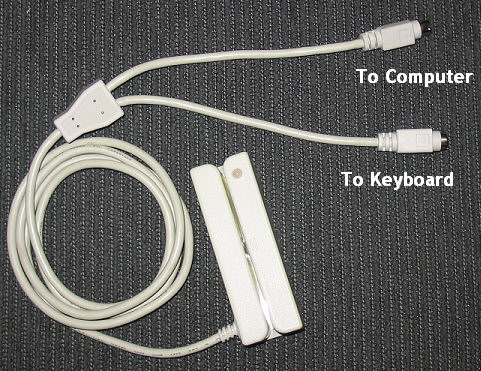

The Unitech MSR200 Magnetic Strip Reader is a Plug 'n Play peripheral device.  See the picture below for connection configuration.
